Linear Guideways/ Moving-Column Mechanism
VMC-4000
DescriptionFeature Description
VMC-4000 Linear
quideways/ Moving-Column Mechanism
Applicable for Heavy-duty
machining on strip-shaped aluminum, iron, casting, steel workpiece.
Merits:
1. Moving-Column Mechanism for space-saving
suitable for replacing Double-Column Machining
Centers.
2. High-rigidity structure cooperates with heavy load
linear guideways to averagely support the
machine body features low
deformation, high surface machining accuracy and long lifetime.
VMC-4000
VMC-5000 STRUCTURE：
X-axis is driven by ballscrew.
Y/Z axes are driven by ballscrews.
Timing belt driven BT-40 spindle.

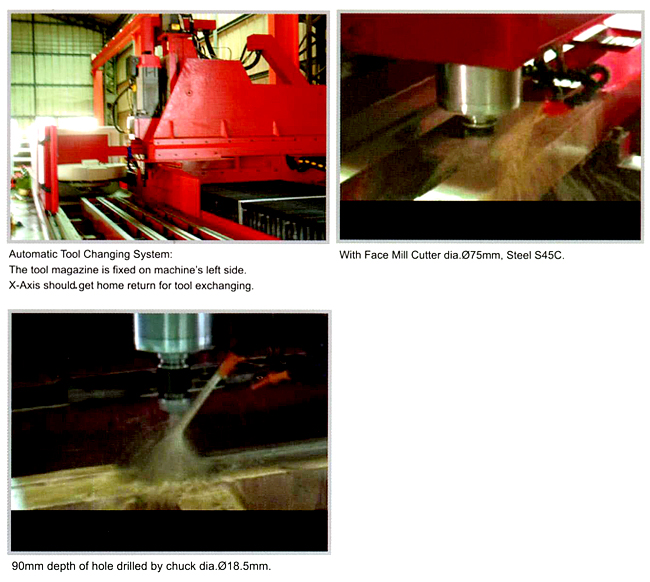

Tool exchanges at the origin.
16-Tool Umbrella type ATC mechanism.
VMC-6000
VMC-7000 STRUCTURE：
X-axis is driven by gear rack.
Y/Z axes are driven by ballscrews.
Timing belt driven BT-40 spindle.
Tool exchanges at the origin.
16-Tool Umbrella type ATC.
|
VMC-4000H MACHINE
SPECIFICATIONS |
||||
|
ITEM |
VMC-4000 |
VMC-5000 |
VMC-6000 |
VMC-7000 |
|
X-axis Travel |
4000mm |
5000mm |
6000mm |
7000mm |
|
Y-axis Travel |
450mm |
|||
|
Z-axis Travel |
250mm |
|||
|
Spindle nose |
180~430mm |
|||
|
Spindle center |
420mm |
|||
|
SPINDLE |
||||
|
Spindle speed |
7000rpm |
|||
|
Spindle taper |
BT-40 |
|||
|
FEEDRATE |
||||
|
Rapid traverse (X) |
12m/min |
10m/min |
20m/min |
20m/min |
|
Rapid traverse (Y, Z) |
15m/min |
12m/min |
||
|
Feed rate (X, Y, Z) |
1~6000mm/min |
|||
|
AUTOMATIC TOOL CHANGER |
||||
|
Magazine capacity |
16 |
|||
|
Tool change type |
Armless type |
|||
|
Max. Tool diameter |
φ100mm |
|||
|
Max. Tool weight |
6kg |
|||
|
MOTOR |
||||
|
Spindle motor |
AC 11/15kw |
|||
|
Axis motors |
X, Y, Z / 2.5kw |
|||
|
Positioning accuracy |
±0.008m |
±0.010m |
||
|
Repeatability accuracy |
±0.005mm |
±0.008mm |
||
|
Machine net weight |
16500kg |
18800kg |
21100kg |
23400kg |
|
Packing diesions |
7500x2700x |
8600x2700x |
9700x2700x |
10800x2700x |
|
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
|
1. Submerged coolant
system |
1. Coolant through
spindle |
|
2. Semi-splash guard |
2. Power transformer |
|
3. Press-relief
lubrication system |
3. Buzzer |
|
4. Spindle air blast |
4. Air-conditioned
electric cabinet |
|
5. 16-Tool Armless type
ATC |
|
|
6. Tool kit |
|
|
7. Leveling kit |
|
|
8. Auto. Power off
(M30) |
|
|
9. Heat exchanger |
|
|
10.Warning light |
|
